Surface Water Drainage Systems for Driveways, Roads, Paths...
Surface water drainage is essential for preventing flooding, maintaining structural integrity, and ensuring compliance with UK building regulations. This guide explores various drainage systems tailored for domestic driveways, minor roads, and similar projects. It also delves into Sustainable Urban Drainage Systems (SUDS) regulations and how they impact drainage design and installation.
What are SUDS, and Why Are They Important?
Sustainable Urban Drainage Systems (SUDS) aim to replicate natural water cycles by slowing down runoff, filtering pollutants, and allowing water to seep back into the ground. SUDS play a crucial role in flood prevention, especially as impermeable surfaces like driveways can overload public drainage systems. Key legislation includes:
Planning Rules: Any new or extended impermeable driveway exceeding 5m² must either have SUDS-compliant drainage or secure planning permission.
British Standards: Drainage systems must adhere to BS 7533-13, which outlines design, installation, and maintenance requirements for permeable and impermeable surfaces for homebuilding and renovating
Types of Surface Water Drainage Systems
Permeable Paving:
Features: Allows rainwater to pass between blocks into a prepared sub-base, where it can slowly infiltrate the soil.
Compliance: Fully meets SUDS requirements, offering a stylish and functional option for driveways.
Maintenance: Requires periodic cleaning to prevent clogging.

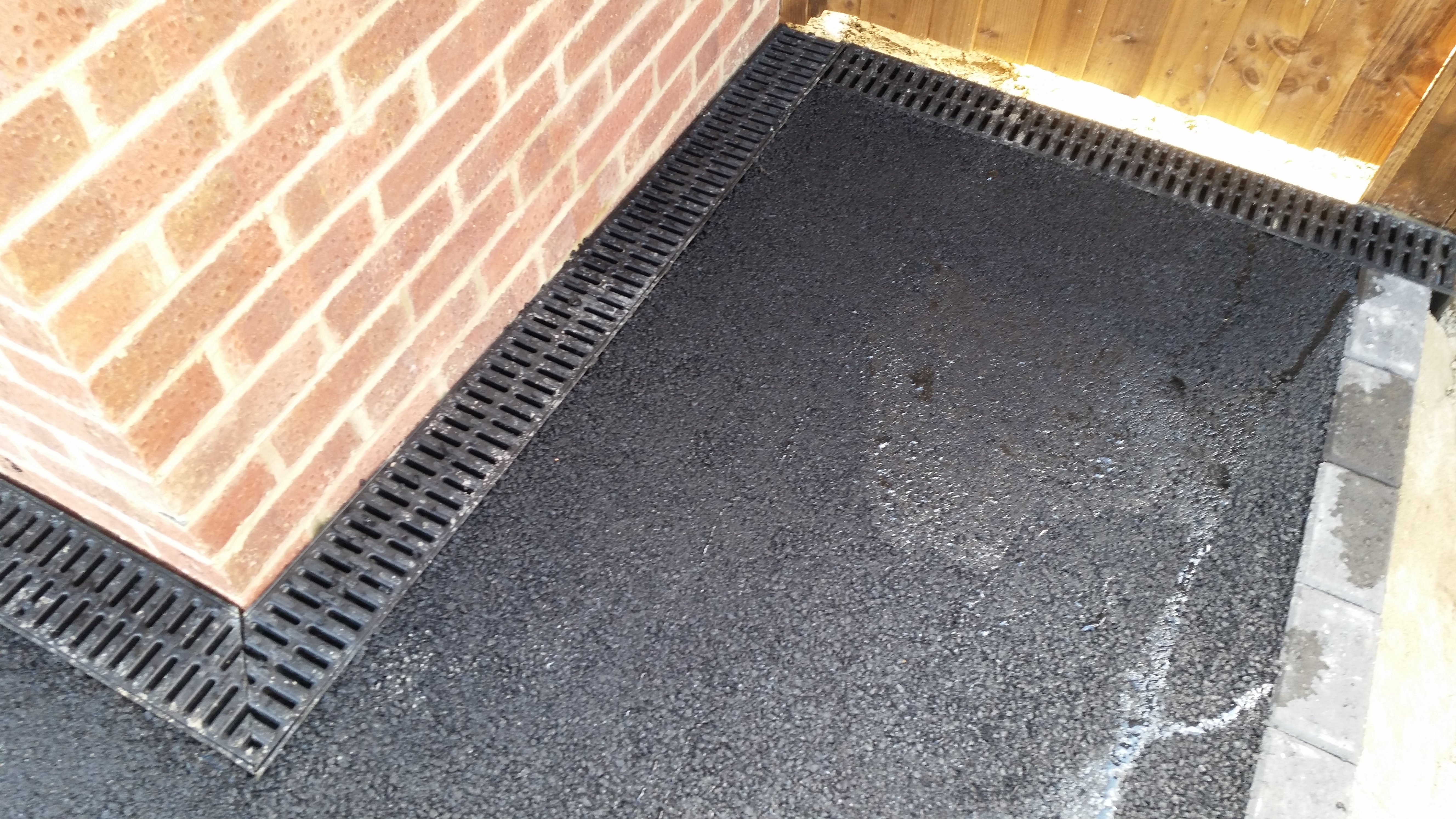

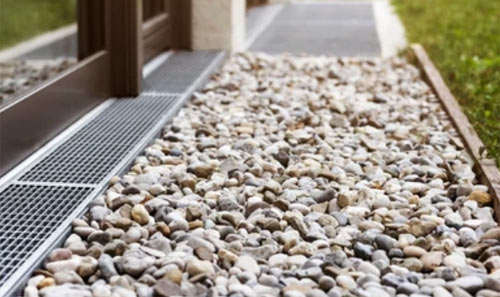

Linear Drainage Channels, Features: Installed at low points or along driveway edges, these channels capture and direct surface water to soakaways or drains.
Applications: Ideal for areas with heavy rainfall or steep gradients.
Construction Standards: Must comply with EN 1433 for load-bearing capabilities.
Soakaways:
Features: Underground chambers that collect and gradually release water into surrounding soil.
Uses: Suitable for larger properties with adequate space and permeable subsoil.
Regulations: Placement must be at least 5m from buildings and boundaries as per UK guidelines
Homebuilding & Renovating.
Gravel Driveways with Containment Grids:
Features: Combines traditional gravel aesthetics with modern stability using plastic grids.
Benefits: Reduces gravel migration, provides heavy load support, and is fully permeable.
SUDS Approval: Compliant, provided the sub-base is designed for infiltration.
Resin-Bound Surfaces:
Features: A permeable option that combines aggregate with resin, creating a smooth, durable finish.
Comparison: Unlike resin-bonded surfaces, which are impermeable, resin-bound systems comply with SUDS standards.
Ideal Uses: Driveways, paths, and patios with aesthetic and functional needs
Homebuilding & Renovating.

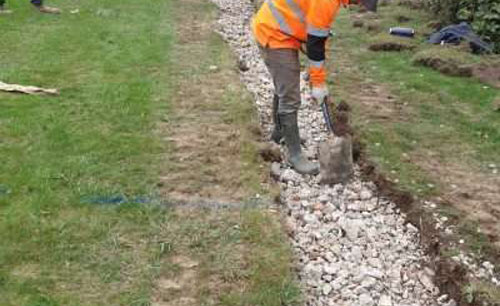

Swales and Infiltration Trenches:
Features: Vegetated or gravel-lined channels that slow and filter water before infiltration.
Applications: Often used alongside other drainage solutions for larger projects.
